Entry information
| Complex | |
| AACDB_ID: | 665 |
| PDBID: | 3U9U |
| Chains: | AB_F |
| Organism: | Mus musculus, Homo sapiens |
| Method: | XRD |
| Resolution (Å): | 3.42 |
| Reference: | 10.1371/journal.pone.0039413 |
| Antibody | |
| Antibody: | 1479 Fab |
| Antibody mutation: | No |
| INN (Clinical Trial): | |
| Antigen | |
| Antigen: | Receptor tyrosine-protein kinase erbB-4 |
| Antigen mutation: | No |
| Durg Target: | Q15303 |
Sequence information
Antibody
Heavy Chain: A
Mutation: NULL
| >3U9U_A|Chain A, C|Fab Heavy Chain|Mus musculus (10090) QVTLKESGPGILQPSQTLSLTCSFSGFSLSTYGIGVGWIRQPSGKGLEWLAHIWWNDNKYYNIALRSRLTISKDTSNNQVFLKIASVDTADTATYYCARIPDDHYFDYWGQGTTLTVSSAKTTAPSVYPLAPVCGDTTGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIEPRGPTIK |
Light Chain: B
Mutation: NULL
| >3U9U_B|Chain B, D|Fab Light Chain|Mus musculus (10090) DVLMTQTPLSLPVSLGDQASISCRSSQSIVHSNGNTYLEWYLQKPGQSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDLGVYYCFQGSHVPWTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC |
Antigen
Chain: F
Mutation: NULL
| >3U9U_F|Chain E, F|Receptor tyrosine-protein kinase erbB-4|Homo sapiens (9606) QSVCAGTENKLSSLSDLEQQYRALRKYYENCEVVMGNLEITSIEHNRDLSFLRSVREVTGYVLVALNQFRYLPLENLRIIRGTKLYEDRYALAIFLNYRKDGNFGLQELGLKNLTEILNGGVYVDQNKFLCYADTIHWQDIVRNPWPSNLTLVSTNGSSGCGRCHKSCTGRCWGPTENHCQTLTRTVCAEQCDGRCYGPYVSDCCHRECAGGCSGPKDTDCFACMNFNDSGACVTQCPQTFVYNPTTFQLEHNFNAKYTYGAFCVKKCPHNFVVDSSSCVRACPSSKMEVEENGIKMCKPCTDICPKACDGIGTGSLMSAQTVDSSNIDKFINCTKINGNLIFLVTGIHGDPYNAIEAIDPEKLNVFRTVREITGFLNIQSWPPNMTDFSVFSNLVTIGGRVLYSGLSLLILKQQGITSLQFQSLKEISAGNIYITDNSNLCYYHTINWTTLFSTINQRIVIRDNRKAENCTAEGMVCNHLCSSDGCWGPGPDQCLSCRRFSRGRICIESCNLYDGEFREFENDSICVECDPQCEKMEDGLLTCHGPGPDNCTKCSHFKDGPNCVEKCPDGLQGANSFIFKYADPDRECHPCHPNCTQGCNGPTSHDCIYYPWTGHSTLPQHART |
Interaction
1、Solvent accessible surface areas (SASA) were calculated (Naccess V2.1.1) for each residue in antibody and antigen, respectively. The residues with SASA loss in binding of more than 1Å2 were classified as interacting residues.
Interacting residues (ΔSASA based)
| Chain residues position delta_SASA
: residuesposition A: TYR32 GLY33 TRP54 TRP55 ASN56 ASP57 ASN58 LYS59 TYR60 ASP102 ASP103 HIS104 B: HIS31 SER32 ASN33 ASN35 LYS55 VAL99 F: TYR582 ASP584 PRO585 HIS590 PRO591 CYS592 HIS593 PRO594 ASN601 PRO603 THR604 SER605 HIS606 ASP607 CYS608 |

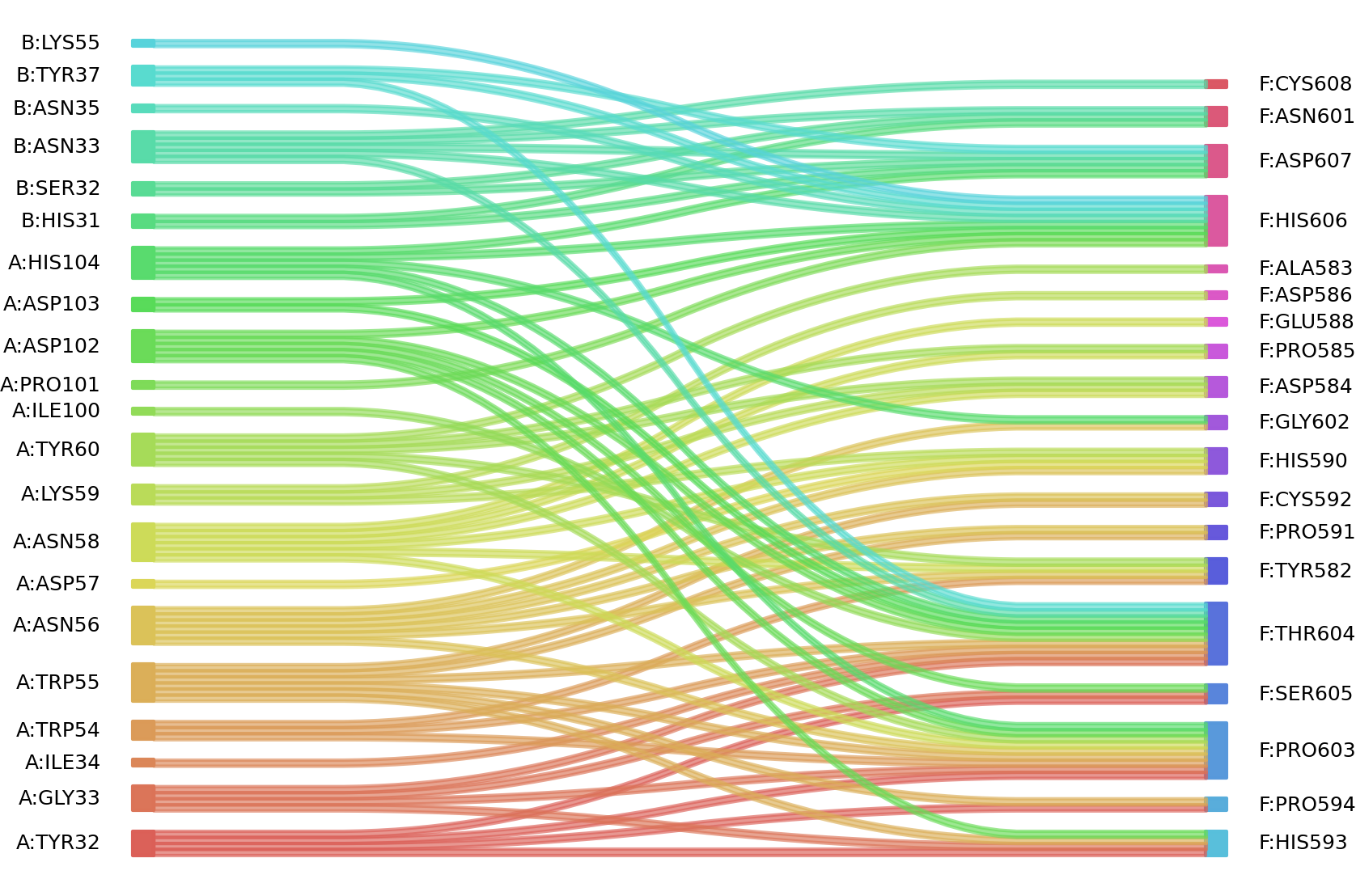

2、We defined interacting paratope-epitope residues by a distance cutoff of < 6 Å . Two amino acids are considered as interacting residues if they have at least one atom within a distance of 6 Å from any atom.
Interacting residues (Atom distance based)
