Entry information
| Complex | |
| AACDB_ID: | 5236 |
| PDBID: | 7UZ6 |
| Chains: | HL_A |
| Organism: | Severe acute respiratory syndrome coronavirus 2, Mus musculus |
| Method: | EM |
| Resolution (Å): | 2.80 |
| Reference: | 10.1016/j.immuni.2022.10.019 |
| Antibody | |
| Antibody: | M8a-28 Fab |
| Antibody mutation: | No |
| INN (Clinical Trial): | |
| Antigen | |
| Antigen: | SARS-CoV-2 spike glycoprotein |
| Antigen mutation: | Yes |
| Durg Target: | P0DTC2 |
Sequence information
Antibody
Heavy Chain: H
Mutation: NULL
| >7UZ6_H|Chain D[auth H], F[auth M], H[auth P]|M8a-28 Fab heavy chain|Mus musculus (10090) QVQLQQPGAELVKPGASVKMSCKASGYNFNHYWISWVKQRPGQGLEWIGDIYPLSHFTTYNEKFTNRATLTVDTSSTTAYMQLNSLTSDDSAVFYCARWDYFDSRTFDYWGQGTTLTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHHHHHH |
Light Chain: L
Mutation: NULL
| >7UZ6_L|Chain E[auth L], G[auth N], I[auth Q]|M8a-28 Fab light chain|Mus musculus (10090) DILLTQFPAILSVSPGERVSFSCRASQTIGTNIHWYQQRINGSPRLLIKYASESISGIPSRFSGSGSGTDFSLSINNVESEDIADYYCQQINSWPLTFGAGTKLDLKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC |
Antigen
Chain: A
Mutation: K814P/G889P/I896P/S939P/R983P/L984P
| >7UZ6_A|Chain A, B, C|Spike glycoprotein|Severe acute respiratory syndrome coronavirus 2 (2697049) MFVFLVLLPLVSSQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHSTQDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPVLPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVVIKVCEFQFCNDPFLGVYYHKNNKSWMESEFRVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPINLVRDLPQGFSALEPLVDLPIGINITRFQTLLALHRSYLTPGDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQDVNCTEVPVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEHVNNSYECDIPIGAGICASYQTQTNSPASVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKDFGGFNFSQILPDPSKPSKRSPIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGPALQIPFPMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLSSTPSALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQYIKWPSGRLVPRGSPGSGYIPEAPRDGQAYVRKDGEWVLLSTFLGHHHHHH |
Interaction
1、Solvent accessible surface areas (SASA) were calculated (Naccess V2.1.1) for each residue in antibody and antigen, respectively. The residues with SASA loss in binding of more than 1Å2 were classified as interacting residues.
Interacting residues (ΔSASA based)
| Chain residues position delta_SASA
: residuesposition H: ASN35 HIS36 TRP38 TYR57 LEU59 SER62 PHE64 TRP107 TYR109 PHE110 ASP111 ARG113 L: ASP1 ILE2 GLN27 THR28 TYR56 ILE107 ASN108 SER109 TRP114 LEU116 A: PRO337 GLY339 GLU340 ASN343 ALA344 THR345 ARG346 LYS356 ASN440 LEU441 ASP442 SER443 LYS444 VAL445 ASN448 ASN450 TYR451 PRO499 ARG509 |

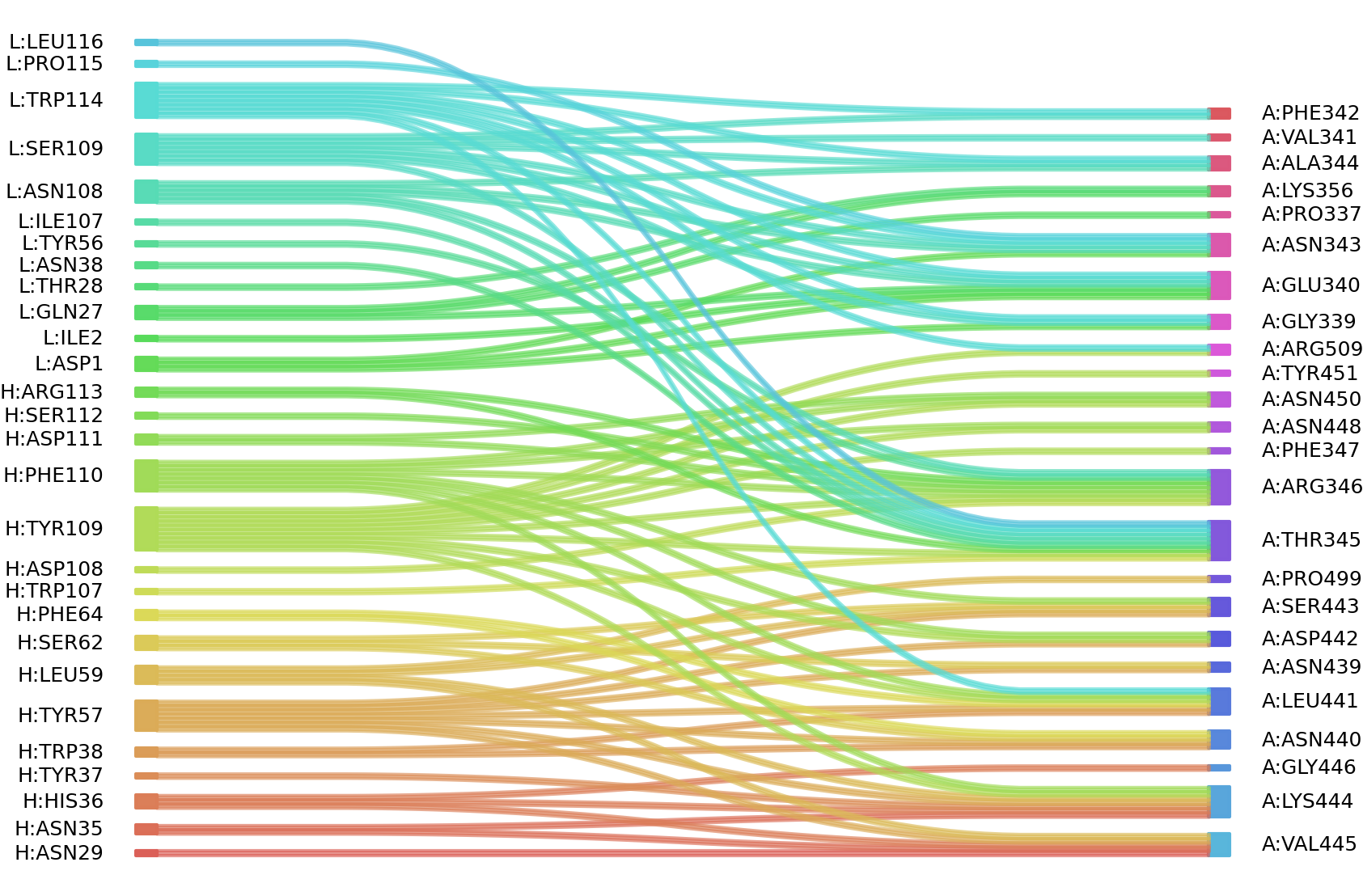

2、We defined interacting paratope-epitope residues by a distance cutoff of < 6 Å . Two amino acids are considered as interacting residues if they have at least one atom within a distance of 6 Å from any atom.
Interacting residues (Atom distance based)
