Entry information
| Complex | |
| AACDB_ID: | 5232 |
| PDBID: | 7UZ4 |
| Chains: | HL_A |
| Organism: | Severe acute respiratory syndrome coronavirus 2, Mus musculus |
| Method: | EM |
| Resolution (Å): | 3.10 |
| Reference: | 10.1016/j.immuni.2022.10.019 |
| Antibody | |
| Antibody: | M8a-3 Fab |
| Antibody mutation: | No |
| INN (Clinical Trial): | |
| Antigen | |
| Antigen: | SARS-CoV-2 spike glycoprotein |
| Antigen mutation: | Yes |
| Durg Target: | P0DTC2 |
Sequence information
Antibody
Heavy Chain: H
Mutation: NULL
| >7UZ4_H|Chain D[auth H], F[auth M], H[auth P]|M8a-3 Fab heavy chain|Mus musculus (10090) QVQLQQPGAELVLPGASVKLSCKASGYTFTNYWMHWVKQRPGHGLEWIGEIDPFDTYIKINQKFKGKSTLTVDTSSSTAYMQLSSLTSEDSAVYYCARPDSSGYPVYFDYWGQGTTLTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHHHHHH |
Light Chain: L
Mutation: NULL
| >7UZ4_L|Chain E[auth L], G[auth N], I[auth Q]|M8a-3 Fab light chain|Mus musculus (10090) DIVMTQSHKFMSTSVGDRVSITCKASQDVGTYIAWYQQKPGQSPKLLIYWASTRHTGVPDRFTGSGSGTNYTLTISSVQAEDLALYHCQQHYSTPYTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC |
Antigen
Chain: A
Mutation: K814P/G889P/I896P/S939P/R983P/L984P
| >7UZ4_A|Chain A, B, C|Spike glycoprotein|Severe acute respiratory syndrome coronavirus 2 (2697049) MFVFLVLLPLVSSQCVNLTTRTQLPPAYTNSFTRGVYYPDKVFRSSVLHSTQDLFLPFFSNVTWFHAIHVSGTNGTKRFDNPVLPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVVIKVCEFQFCNDPFLGVYYHKNNKSWMESEFRVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPINLVRDLPQGFSALEPLVDLPIGINITRFQTLLALHRSYLTPGDSSSGWTAGAAAYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNITNLCPFGEVFNATRFASVYAWNRKRISNCVADYSVLYNSASFSTFKCYGVSPTKLNDLCFTNVYADSFVIRGDEVRQIAPGQTGKIADYNYKLPDDFTGCVIAWNSNNLDSKVGGNYNYLYRLFRKSNLKPFERDISTEIYQAGSTPCNGVEGFNCYFPLQSYGFQPTNGVGYQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTESNKKFLPFQQFGRDIADTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQDVNCTEVPVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEHVNNSYECDIPIGAGICASYQTQTNSPASVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLNRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKDFGGFNFSQILPDPSKPSKRSPIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGPALQIPFPMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLSSTPSALGKLQDVVNQNAQALNTLVKQLSSNFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQPELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQYIKWPSGRLVPRGSPGSGYIPEAPRDGQAYVRKDGEWVLLSTFLGHHHHHH |
Interaction
1、Solvent accessible surface areas (SASA) were calculated (Naccess V2.1.1) for each residue in antibody and antigen, respectively. The residues with SASA loss in binding of more than 1Å2 were classified as interacting residues.
Interacting residues (ΔSASA based)
| Chain residues position delta_SASA
: residuesposition H: THR35 ASN36 TRP38 ASP57 PRO58 PHE59 ASP62 TYR64 ASP108 SER109 SER110 GLY111 PRO112 L: ASP28 GLY36 THR37 TYR38 TYR55 TRP56 SER65 THR66 ARG67 TYR108 A: TYR369 PHE374 SER375 THR376 PHE377 LYS378 CYS379 TYR380 GLY381 VAL382 SER383 PRO384 THR385 LYS386 LEU390 GLY404 ASP405 VAL407 ARG408 ALA411 PRO412 GLY413 GLN414 THR415 VAL503 TYR508 |

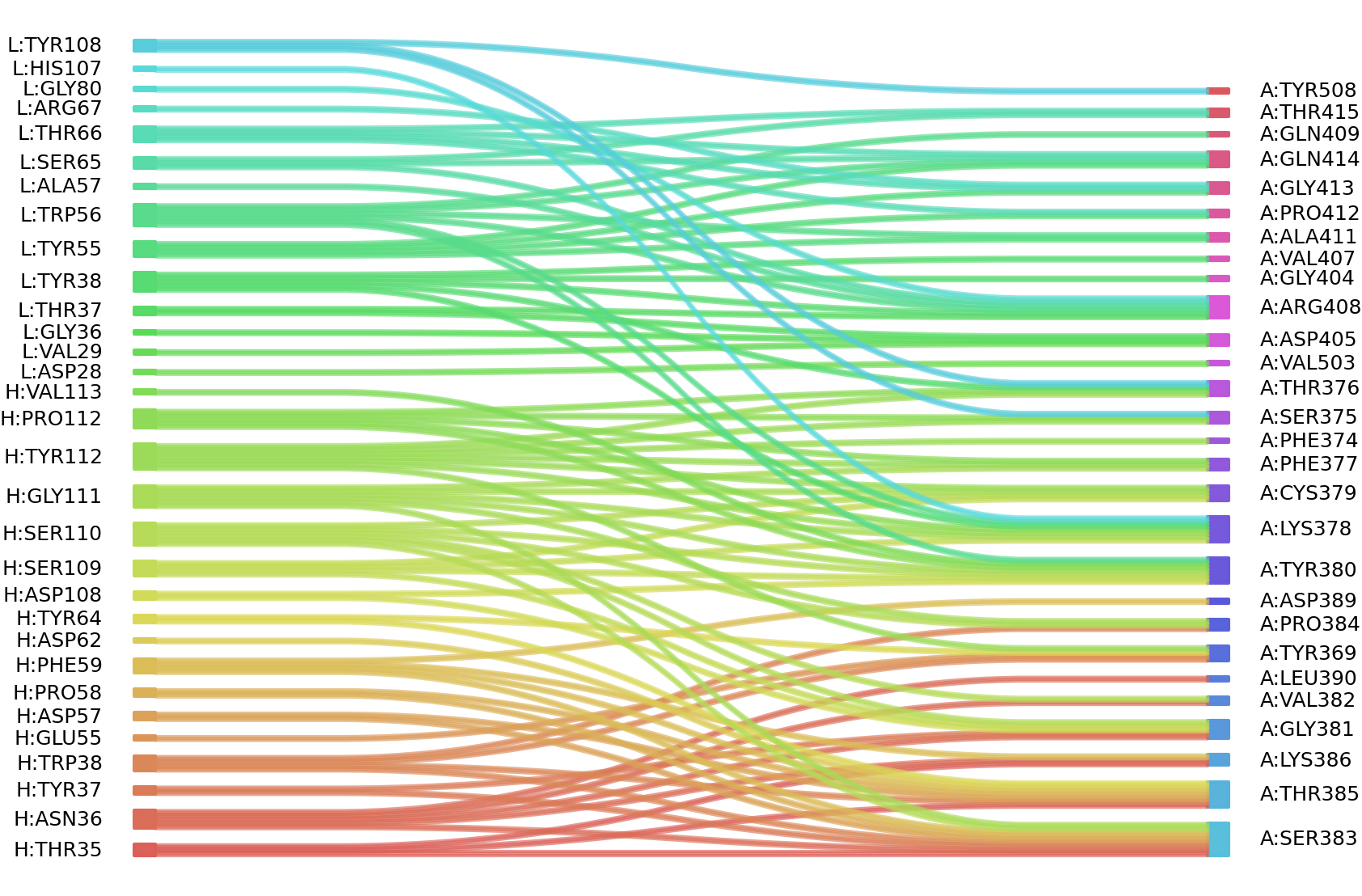

2、We defined interacting paratope-epitope residues by a distance cutoff of < 6 Å . Two amino acids are considered as interacting residues if they have at least one atom within a distance of 6 Å from any atom.
Interacting residues (Atom distance based)
