Entry information
| Complex | |
| AACDB_ID: | 3968 |
| PDBID: | 7KMD |
| Chains: | HL_G |
| Organism: | Homo sapiens, Human immunodeficiency virus 1 |
| Method: | XRD |
| Resolution (Å): | 3.39 |
| Reference: | 10.1128/mBio.00429-21 |
| Antibody | |
| Antibody: | PGT124 Fab |
| Antibody mutation: | No |
| INN (Clinical Trial): | |
| Antigen | |
| Antigen: | HIV-1 clade C isolate Du172.17 HR1.R4.664 gp120 |
| Antigen mutation: | No |
| Durg Target: | |
Sequence information
Antibody
Heavy Chain: H
Mutation: NULL
| >7KMD_H|Chain F[auth H]|124 Heavy chain|Homo sapiens (9606) QVQLQESGPGLVRPSETLSVTCIVSGGSISNYYWTWIRQSPGKGLEWIGYISDRETTTYNPSLNSRAVISRDTSKNQLSLQLRSVTTADTAIYFCATARRGQRIYGVVSFGEFFYYYYMDVWGKGTAVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD |
Light Chain: L
Mutation: NULL
| >7KMD_L|Chain E[auth L]|124 Light chain|Homo sapiens (9606) SYVSPLSVALGETARISCGRQALGSRAVQWYQHKPGQAPILLIYNNQDRPSGIPERFSGTPDINFGTTATLTISGVEVGDEADYYCHMWDSRSGFSWSFGGATRLTVLSQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHKSYSCQVTHEGSTVEKTVAPTECS |
Antigen
Chain: G
Mutation: NULL
| >7KMD_G|Chain C[auth G]|Envelope glycoprotein gp120|Human immunodeficiency virus 1 (11676) GNLWVTVYYGVPVWKEAKTTLFCASDAKAHKEEVHNIWATHACVPTDPNPQEIVLKNVTENFNMWKNDMVDQMHEDIISLWDQSLKPCVKLTPLCVTLNCSDVKIKGTNATYNNATYNNNNTISDMKNCSFNTTTEITDKKKKEYALFYKLDVVALDGKETNSTNSSEYRLINCNTSAVTQACPKVSFDPIPIHYCAPAGYAILKCNNKTFNGTGPCNNVSTVQCTHGIKPVVSTQLLLNGSLAEEEVVIRFENLTNNAKIIIVHLNESVEINCTRPSNNTRKSVRIGPGQTFFATGDIIGDIRQAHCNISRKKWNTTLQRVKEKLKEKFPNKTIQFAPSSGGDLEITTHSFNCRGEFFYCYTSDLFNSTYMSNNTGGANITLQCRIKQIIRMWQGVGQAMYAPPIAGNITCKSNITGLLLTRDGGKEKNDTETFRPGGGDMRDNWRSELYKYKVVEIKPLGIAPDKCKRRVVERRRRRR |
Interaction
1、Solvent accessible surface areas (SASA) were calculated (Naccess V2.1.1) for each residue in antibody and antigen, respectively. The residues with SASA loss in binding of more than 1Å2 were classified as interacting residues.
Interacting residues (ΔSASA based)
| Chain residues position delta_SASA
: residuesposition L: LEU22 GLY23 SER24 PHE64 SER90 ARG91 SER92 GLY93 PHE94 G: VAL134 LYS135 ILE136 LYS137 GLY138 SER152 ASN301 ILE322 ILE323 GLY324 ASP325 ILE326 ARG327 GLN328 HIS330 THR415 GLN417 |

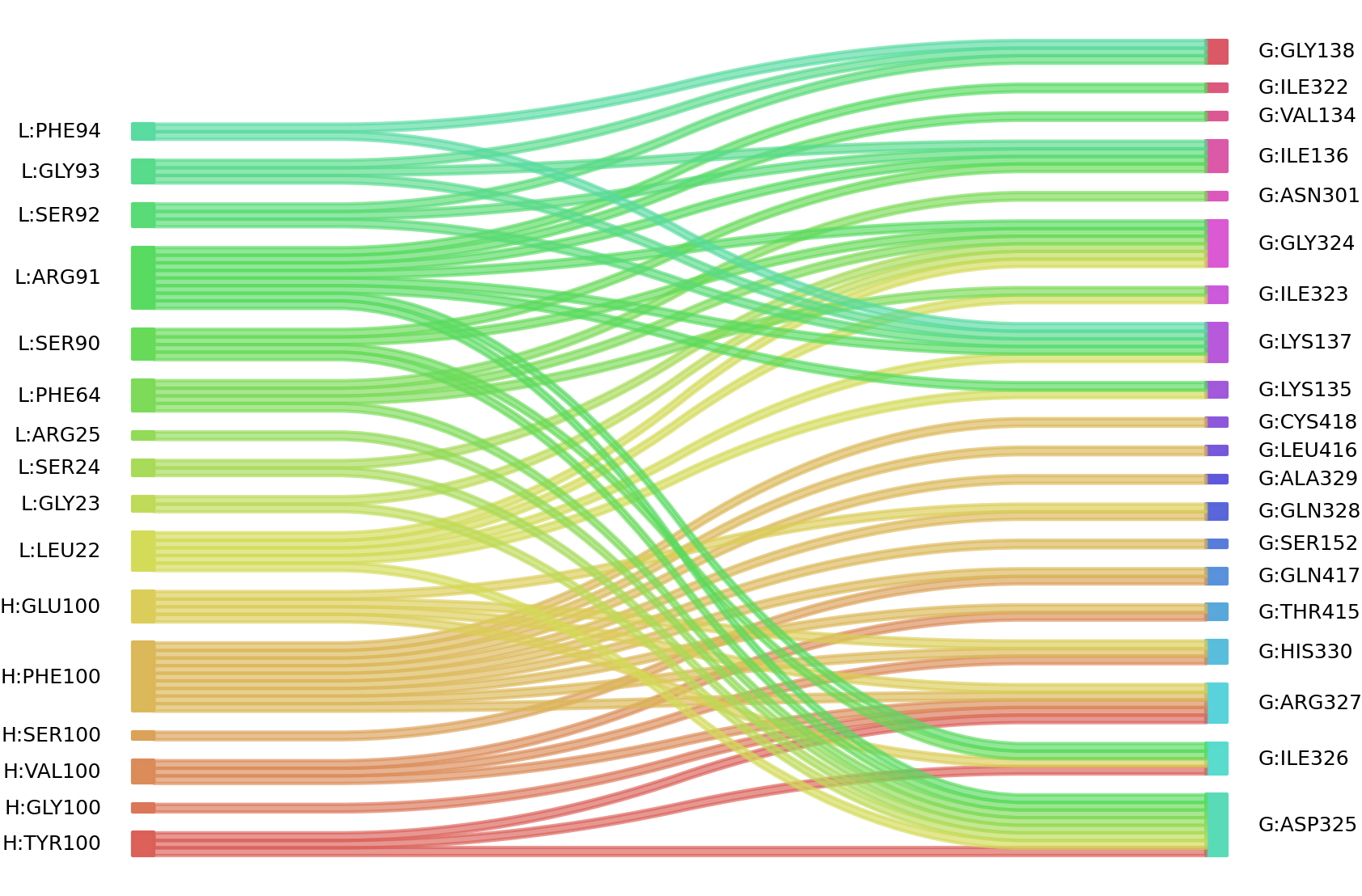

2、We defined interacting paratope-epitope residues by a distance cutoff of < 6 Å . Two amino acids are considered as interacting residues if they have at least one atom within a distance of 6 Å from any atom.
Interacting residues (Atom distance based)
