Entry information
| Complex | |
| AACDB_ID: | 2571 |
| PDBID: | 6O8D |
| Chains: | HL_C |
| Organism: | Homo sapiens |
| Method: | XRD |
| Resolution (Å): | 3.55 |
| Reference: | Not available or To be published |
| Antibody | |
| Antibody: | CODV Fab |
| Antibody mutation: | No |
| INN (Clinical Trial): | |
| Antigen | |
| Antigen: | T cell specific surface glycoprotein CD28 |
| Antigen mutation: | No |
| Durg Target: | |
Sequence information
Antibody
Heavy Chain: H
Mutation: NULL
| >6O8D_H|Chain C[auth H]|Anti-CD28xCD3 CODV Fab Heavy chain|Homo sapiens (9606) QVQLVQSGAEVVKPGASVKVSCKASGYTFTSYYIHWVRQAPGQGLEWIGSIYPGNVNTNYAQKFQGRATLTVDTSISTAYMELSRLRSDDTAVYYCTRSHYGLDWNFDVWGKGTTVTVSSSQVQLVESGGGVVQPGRSLRLSCAASGFTFTKAWMHWVRQAPGKQLEWVAQIKDKSNSYATYYADSVKGRFTISRDDSKNTLYLQMNSLRAEDTAVYYCRGVYYALSPFDYWGQGTLVTVSSRTASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTHHHHHH |
Light Chain: L
Mutation: NULL
| >6O8D_L|Chain B[auth L]|Anti-CD28xCD3 CODV Fab Light chain|Homo sapiens (9606) DIVMTQTPLSLSVTPGQPASISCKSSQSLVHNNANTYLSWYLQKPGQSPQSLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCGQGTQYPFTFGSGTKVEIKGQPKAAPDIQMTQSPSSLSASVGDRVTITCQASQNIYVWLNWYQQKPGKAPKLLIYKASNLHTGVPSRFSGSGSGTDFTLTISSLQPEDIATYYCQQGQTYPYTFGQGTKLEIKTKGPSRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC |
Antigen
Chain: C
Mutation: NULL
| >6O8D_C|Chain A[auth C]|T-cell-specific surface glycoprotein CD28|Homo sapiens (9606) NKILVKQSPMLVAYDNAVNLSCKYSYNLFSREFRASLHKGLDSAVEVCVVYGNYSQQLQVYSKTGFNCDGKLGNESVTFYLQNLYVNQTDIYFCKIEVMYPPPYLDNEKSNGTIIHVKHHHHHHHH |
Interaction
1、Solvent accessible surface areas (SASA) were calculated (Naccess V2.1.1) for each residue in antibody and antigen, respectively. The residues with SASA loss in binding of more than 1Å2 were classified as interacting residues.
Interacting residues (ΔSASA based)
| Chain residues position delta_SASA
: residuesposition L: TYR149 TRP151 GLY210 GLN211 THR212 TYR215 H: THR30 SER31 TYR33 TYR52 GLY54 THR74 TYR101 GLY102 LEU103 ASP104 TRP105 C: GLU50 PHE51 ARG52 TYR69 TYR79 SER80 LYS81 THR82 GLY83 GLU115 MET117 PRO120 TYR122 |

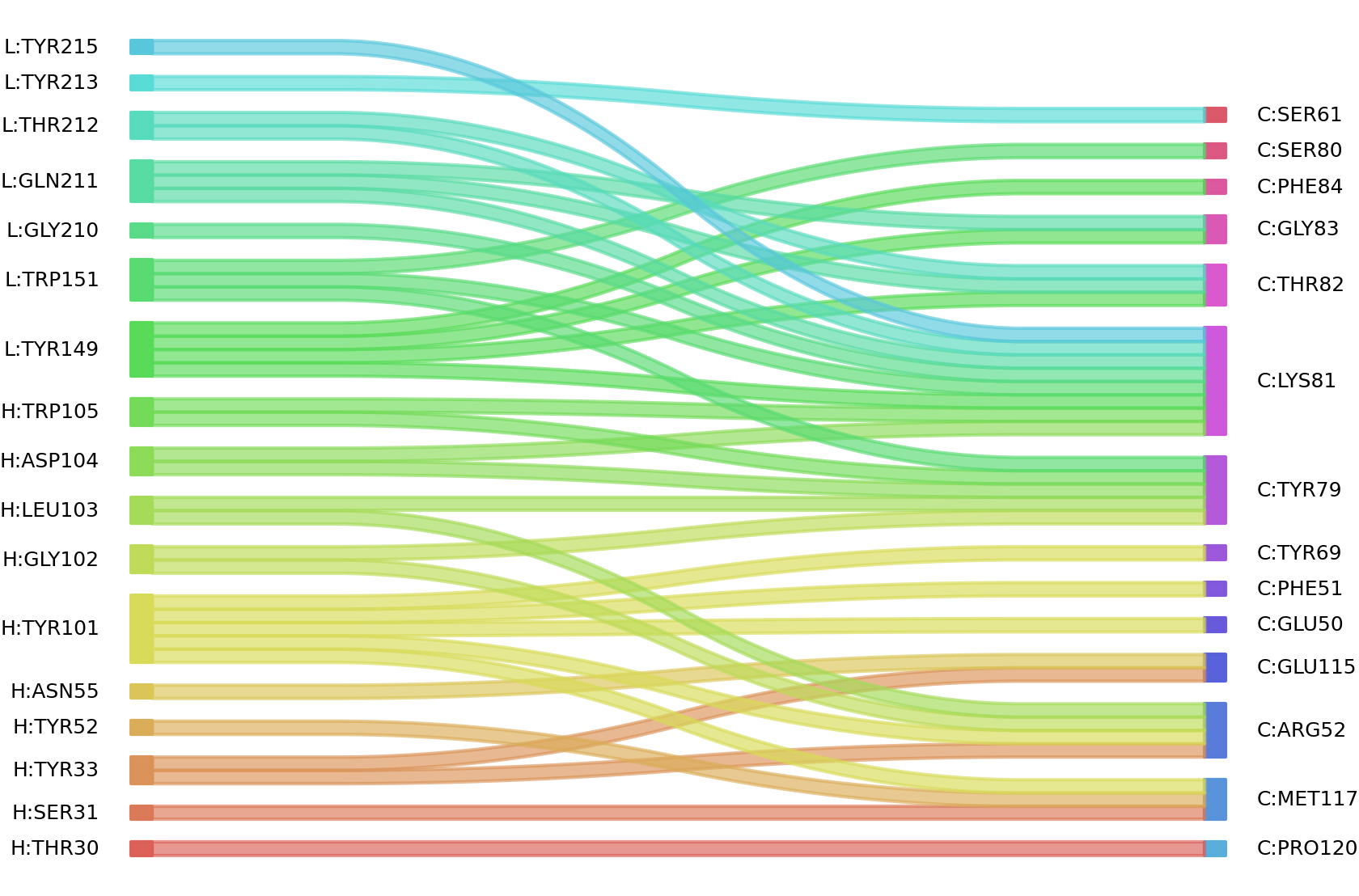

2、We defined interacting paratope-epitope residues by a distance cutoff of < 6 Å . Two amino acids are considered as interacting residues if they have at least one atom within a distance of 6 Å from any atom.
Interacting residues (Atom distance based)
