Entry information
| Complex | |
| AACDB_ID: | 1352 |
| PDBID: | 5FUO |
| Chains: | HL_A |
| Organism: | Homo sapiens |
| Method: | XRD |
| Resolution (Å): | 3.60 |
| Reference: | 10.1080/19420862.2016.1185581 |
| Antibody | |
| Antibody: | CA645 Fab |
| Antibody mutation: | No |
| INN (Clinical Trial): | |
| Antigen | |
| Antigen: | Serum Albumin |
| Antigen mutation: | No |
| Durg Target: | P02768 |
Sequence information
Antibody
Heavy Chain: H
Mutation: NULL
| >5FUO_H|Chain B[auth H]|FAB HEAVY CHAIN|HOMO SAPIENS (9606) EVQLLESGGGLVQPGGSLRLSCAVSGIDLSNYAINWVRQAPGKGLEWIGIIWASGTTFYATWAKGRFTISRDNSKNTVYLQMNSLRAEDTAVYYCARTVPGYSTAPYFDLWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHHHHHH |
Light Chain: L
Mutation: NULL
| >5FUO_L|Chain C[auth L]|FAB LIGHT CHAIN|HOMO SAPIENS (9606) DIQMTQSPSSVSASVGDRVTITCQSSPSVWSNFLSWYQQKPGKAPKLLIYEASKLTSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCGGGYSSISDTTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC |
Antigen
Chain: A
Mutation: NULL
| >5FUO_A|Chain A|SERUM ALBUMIN|HOMO SAPIENS (9606) DAHKSEVAHRFKDLGEENFKALVLIAFAQYLQQCPFEDHVKLVNEVTEFAKTCVADESAENCDKSLHTLFGDKLCTVATLRETYGEMADCCAKQEPERNECFLQHKDDNPNLPRLVRPEVDVMCTAFHDNEETFLKKYLYEIARRHPYFYAPELLFFAKRYKAAFTECCQAADKAACLLPKLDELRDEGKASSAKQRLKCASLQKFGERAFKAWAVARLSQRFPKAEFAEVSKLVTDLTKVHTECCHGDLLECADDRADLAKYICENQDSISSKLKECCEKPLLEKSHCIAEVENDEMPADLPSLAADFVESKDVCKNYAEAKDVFLGMFLYEYARRHPDYSVVLLLRLAKTYETTLEKCCAAADPHECYAKVFDEFKPLVEEPQNLIKQNCELFEQLGEYKFQNALLVRYTKKVPQVSTPTLVEVSRNLGKVGSKCCKHPEAKRMPCAEDYLSVVLNQLCVLHEKTPVSDRVTKCCTESLVNRRPCFSALEVDETYVPKEFNAETFTFHADICTLSEKERQIKKQTALVELVKHKPKATKEQLKAVMDDFAAFVEKCCKADDKETCFAEEGKKLVAASQAALGL |
Interaction
1、Solvent accessible surface areas (SASA) were calculated (Naccess V2.1.1) for each residue in antibody and antigen, respectively. The residues with SASA loss in binding of more than 1Å2 were classified as interacting residues.
Interacting residues (ΔSASA based)
| Chain residues position delta_SASA
: residuesposition H: THR143 ALA144 PRO193 SER195 SER196 GLY198 THR199 GLN200 L: VAL113 ALA114 ALA115 PRO116 SER117 VAL118 PHE119 GLY203 LEU204 SER205 SER206 VAL208 LYS210 A: PRO379 GLU382 GLU383 ASN386 LEU387 PRO486 SER489 ALA490 GLU492 VAL493 GLU495 THR496 PRO499 LYS538 ALA539 LYS541 |

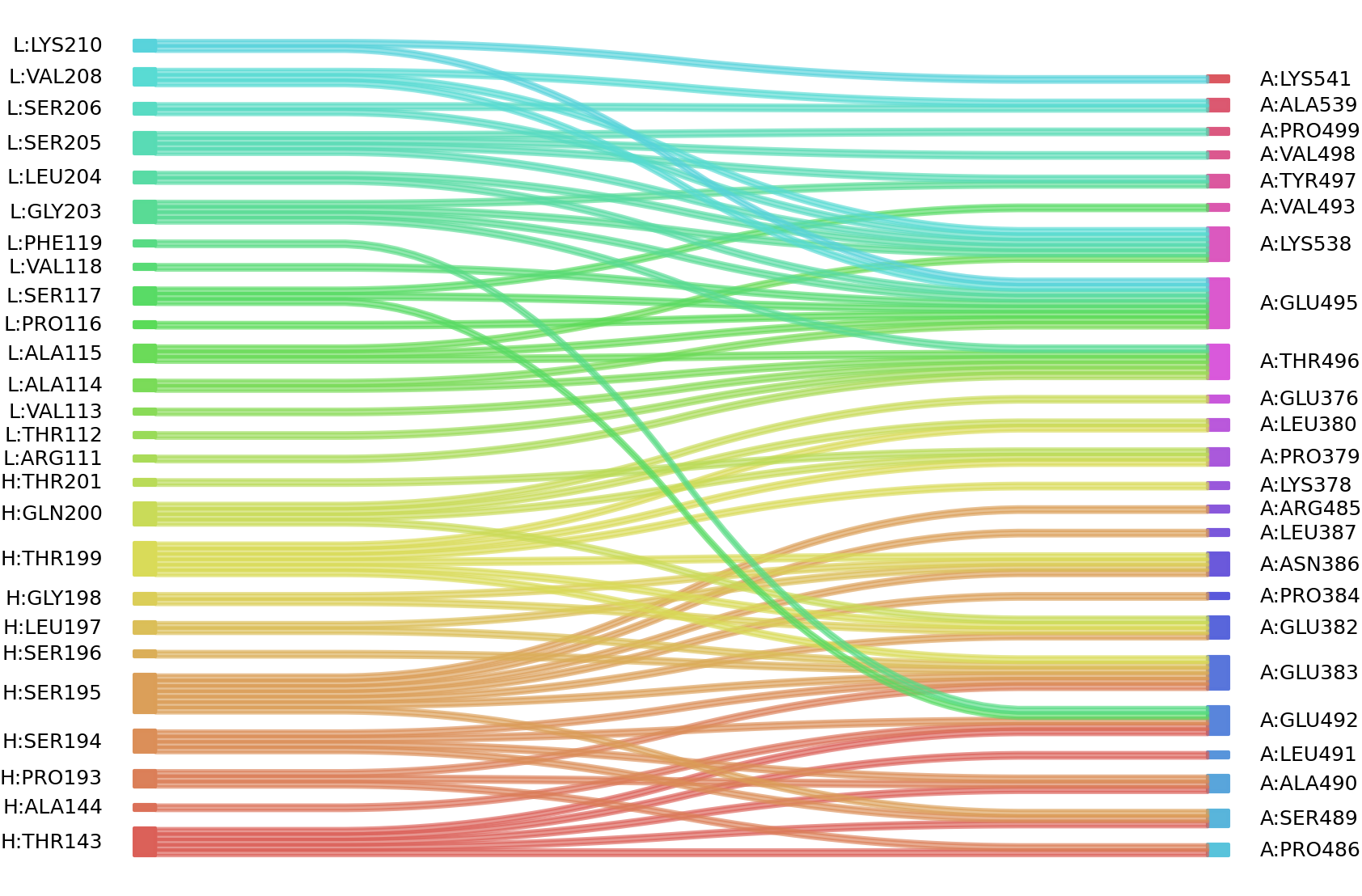

2、We defined interacting paratope-epitope residues by a distance cutoff of < 6 Å . Two amino acids are considered as interacting residues if they have at least one atom within a distance of 6 Å from any atom.
Interacting residues (Atom distance based)
